Halle
Technical Information
Stage Dimensions
Width
17.80 m
Length
47.80 m
Total Floor Area
850 m2
Height
Roof Grid (Bottom Edge)
9.95 m
Gallery
7.70 m
Storage
-3.38 m
Fly Galleries
Gallery, left and right
7.70 m
Gallery, west
8.12 m
Gallery, east
7.02 m
Halle Gate, Schiffbaustrasse
Maximum Opening
3.50 m x 4.70 m
Emergency Escape Doors
2x 1.2 m x 2.12 m
Other Entrances
Schiffbaustrasse
2.38 m x 2.12 m
Turbinenplatz
1.89 m x 2.00 m
Workshops
front: 0.94 m x 2.00 m/ back: 0.84 m x 2.00 m
Seating Capacity

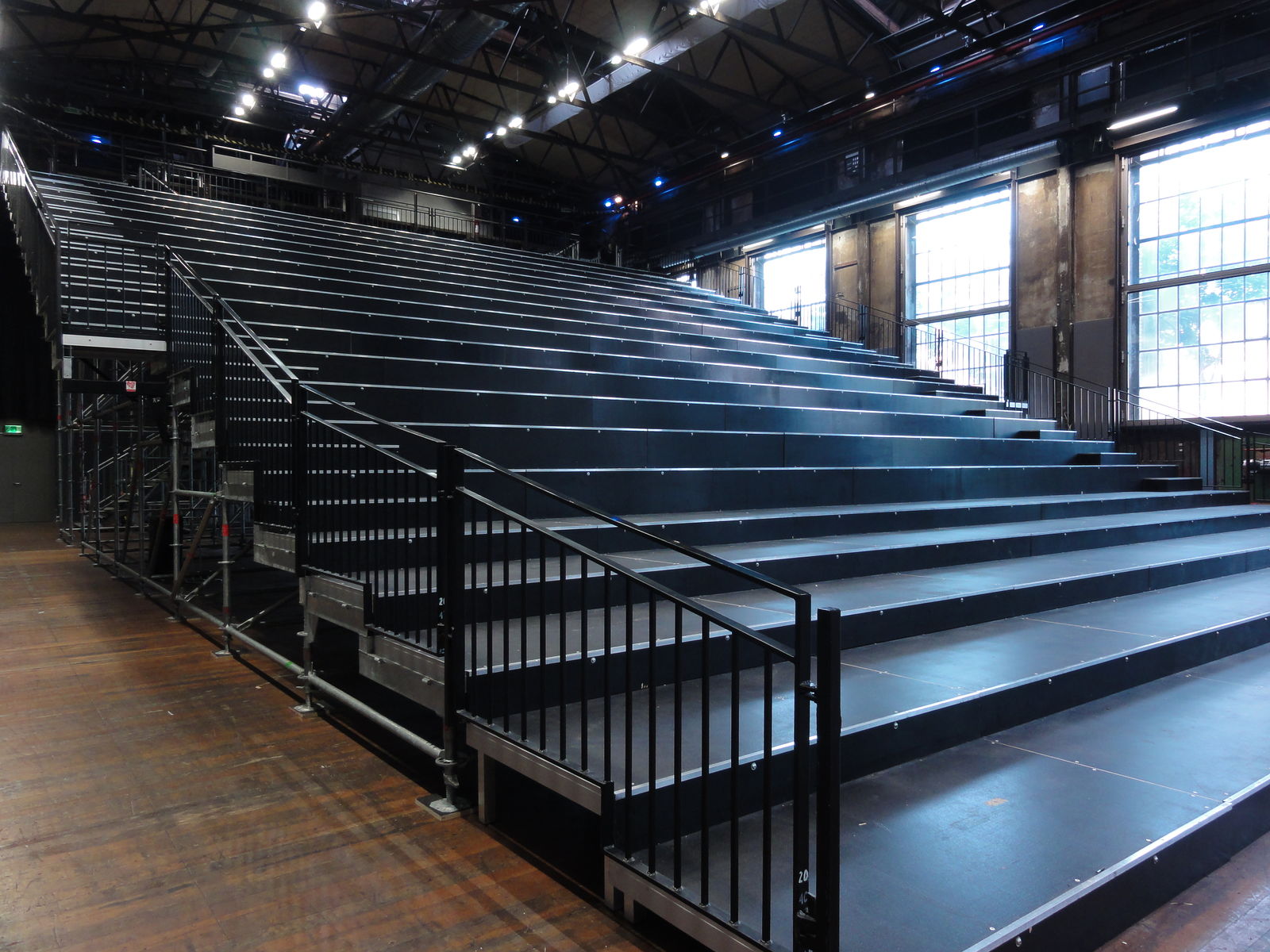

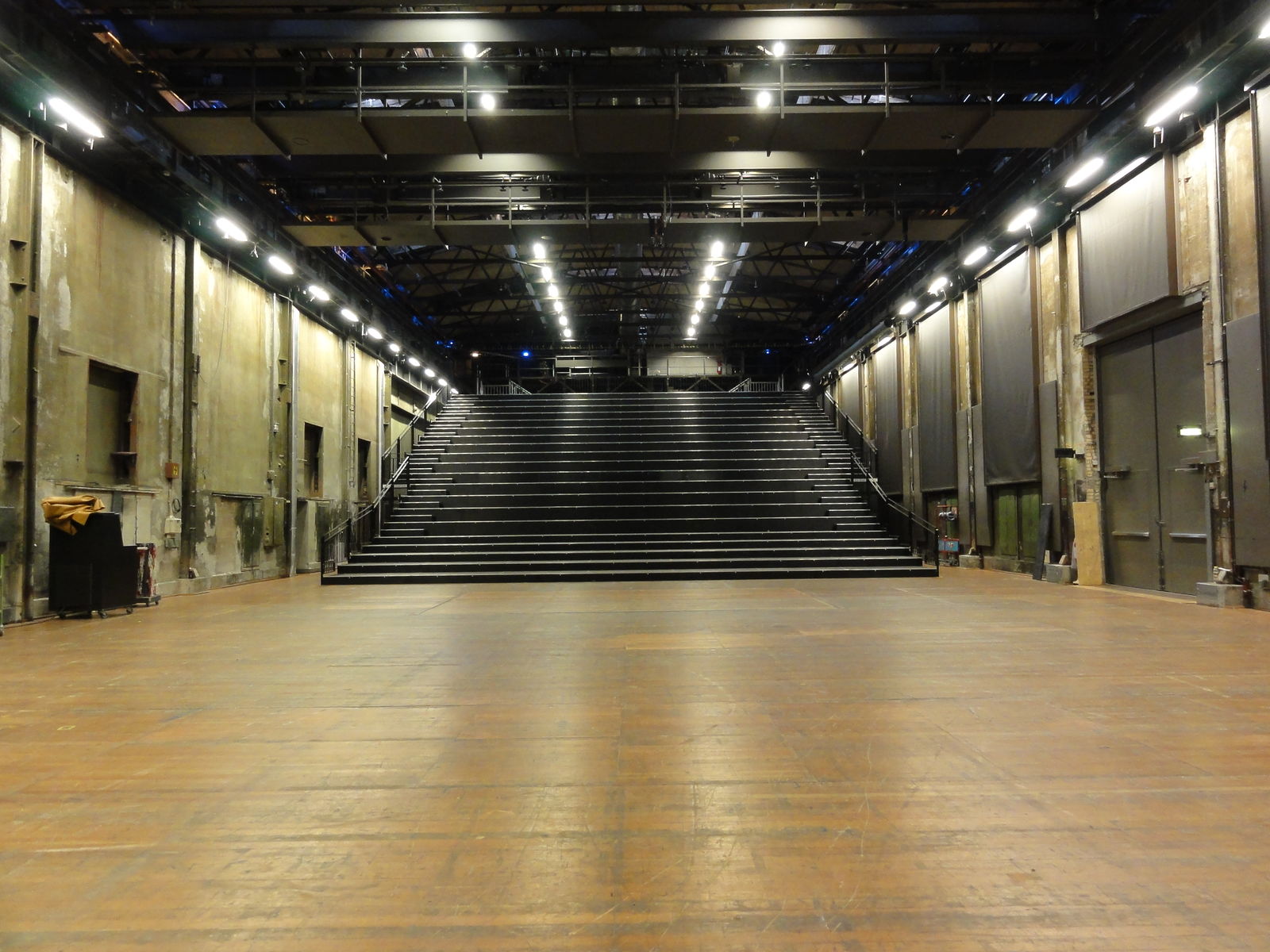

Bleacher Seating
-
Tier 40 cm 470 Pers.
-
Tier 20 cm 350 Pers.
Non-Tiered
-
max. 800 Pers.
Banquet-Style
-
Rectangular Tables 700 Pers.
-
Round Tables 400 Pers.
Loads
area concrete
Floor Point Load
1000 kg (30cmx30cm Distribution Plate)
Floor Area Load
750 kg/m2
area wood
Distance load point to load point minimum
1.50m
Floor Area Load
750 kg/m2

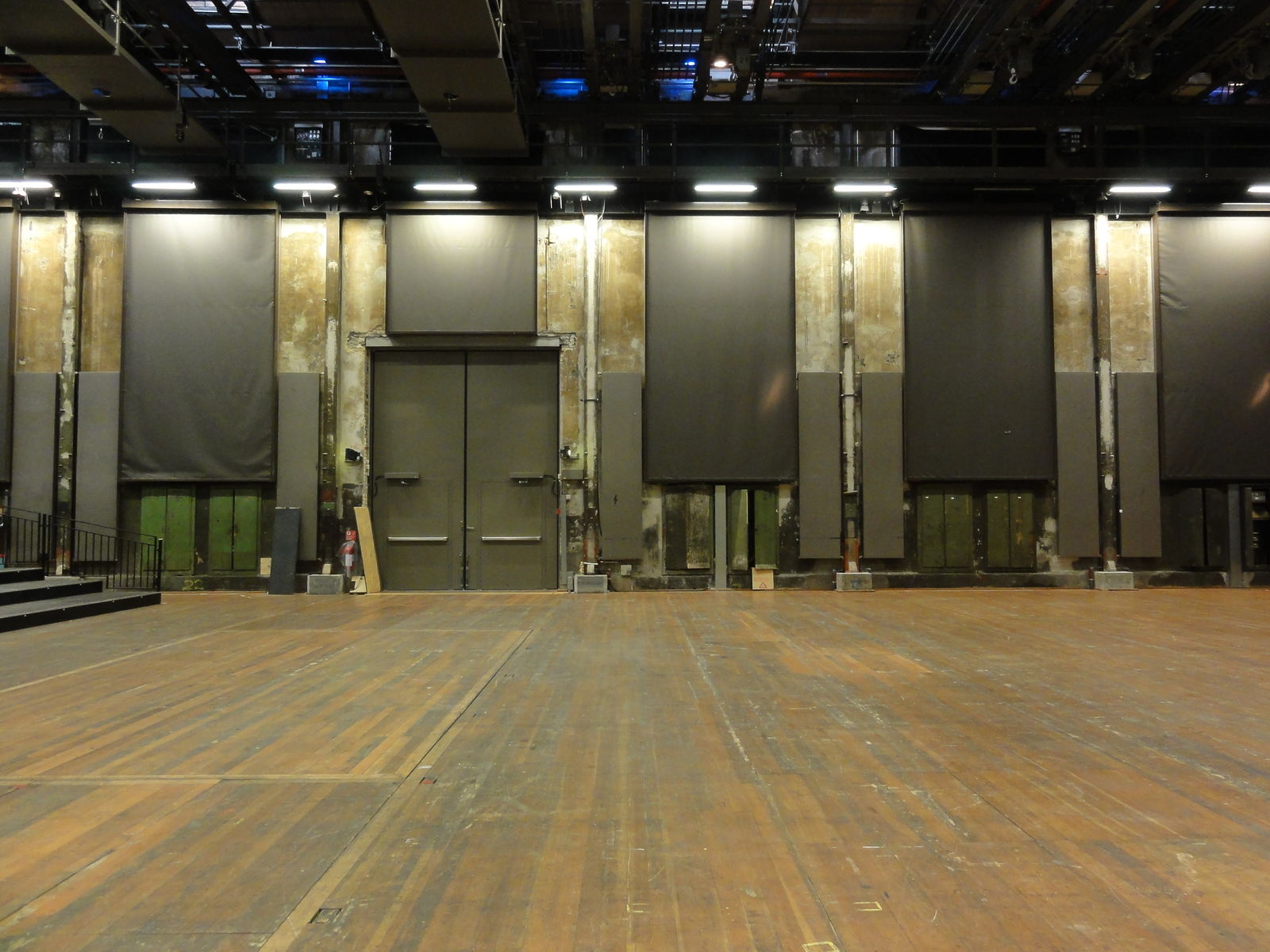

Roler blinds
-
Blinds on wall south in 2 groups not for scenic use (not suitable for scenic use)
Stage Technical Systems
Under Machinery
Scissors Lift Platform
Dimensions:
6.49 m x 3.99 m
Hub:
-3.28 m, +1.60 m, 0.2 m/s
Loads:
static 1000 kg / m2
Miscellaneous:
limited Scenic Application
Upper Machinery (Crane Runway)
Lighting Bridges (Proscenium) each with 4x Electric Chain Hoists (2 units)
Hub:
±0.00 m - +7.70 m
Loads:
2000 kg each
Miscellaneous:
Moveable Lengthwise in the Space (coupled electric chain hoists)
Crane Runway with 4 Combined Travelling Trolley and Chain Hoist Unit
Hub:
±0.00 m - +9.20 m/ +8.80 m
Loads
8 x 250 kg/ 8 x 1000 kg
Miscellaneous:
Moveable Lengthwise in the Space
Crane Runway with 2 Combined Travelling Trolley and Chain Hoist Unit
Hub:
±0.00 m - +9.20 m/ +8.80 m
Loads
2 x 250 kg
Miscellaneous:
Moveable Lengthwise in the Space
Lighting Technical System
Lighting Control
Flexible
Lighting Control System
MA Lighting grandMA 2
Network
MA-net and sACM DMX Distribution
Dimmer System
ETC Sensor3 FDX3000 with ThruPower Modules
Electrical Circuits
10 kW DIM
3 Units
6 kW DIM
30 Units
3 kW DIM
216 Units
NON DIM
16A / 32A / 63A
HMI Ballasts (up to 2.5, 4 kW)
8+8 Units
Sound Technical System
Mixer
Studer Vista V
Effects
Lexicon PCM96
Player
Ableton Live
Public Address System
d&b Q1/ Q7 / L-Acoustic X12 / X8
Subs
d&b J-Sub / L-Acoustic SB218
Microport Devices System
16 Canal (Shure)
Video Technical System
Video control
Panasonic AV HS-410
Player
Medienserver AV Stumpfl Wings RX
Beamer
Barco UDM 4K22
Beamer mobile
upon Request
Prompting System
Location
Flexible
Stage Manager’s Desk
24 Sets of Lights
-
General Call
-
Selective Call
-
Paging System
-
Cameras (Infrared / Zoom / Total)
Subtiteling System
Software
Panthea Spectitular
Display
4 x LED panels 2 m x 0.5 m
Building Utilities
Direct Circuits
-
2 x CEE 63A 3P
-
2 x CEE 32A 3P / 2 x CEE 63A 3P
-
2 x CEE63 (not RCD protected)
-
PowerLock 400A
Basement
Total 250A
-
1x CEE 125 A 3P / 1x CEE 63A 3P
-
2x CEE 32A 3P / 1x CEE 16A 3P
Water (cold)
2 Units
Compressed Air Outlet (7 Bar)
2 Units
Fire Protection (Fire Detection System)
-
4x Wireless Fire Detectors for Stage Decor
-
Sprinkler System
-
Hand Fire Extinguisher
-
Fire Hose Cabinets
Heating Source
-
Radiators + Ventilation System (no air condition system)
Ventilation (2-Speed for 500 Persons)
-
Source outlets in bottom on both sides of the long side
-
(in Winter Ventilation in Continuous Operation, 2-Speed)
-
(in Summer no air condition)
Miscellaneous
-
No Means of Sound Protection Available

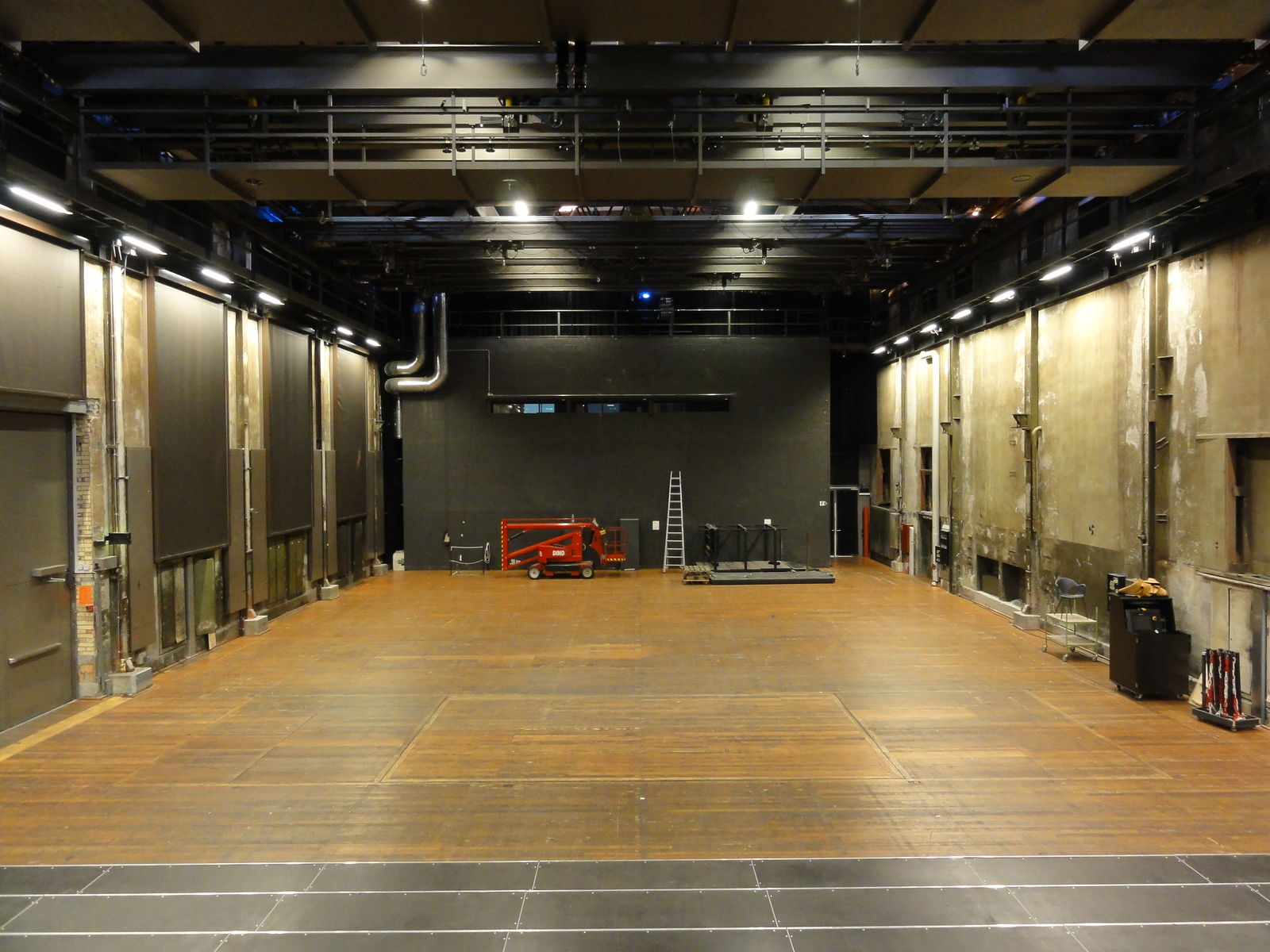

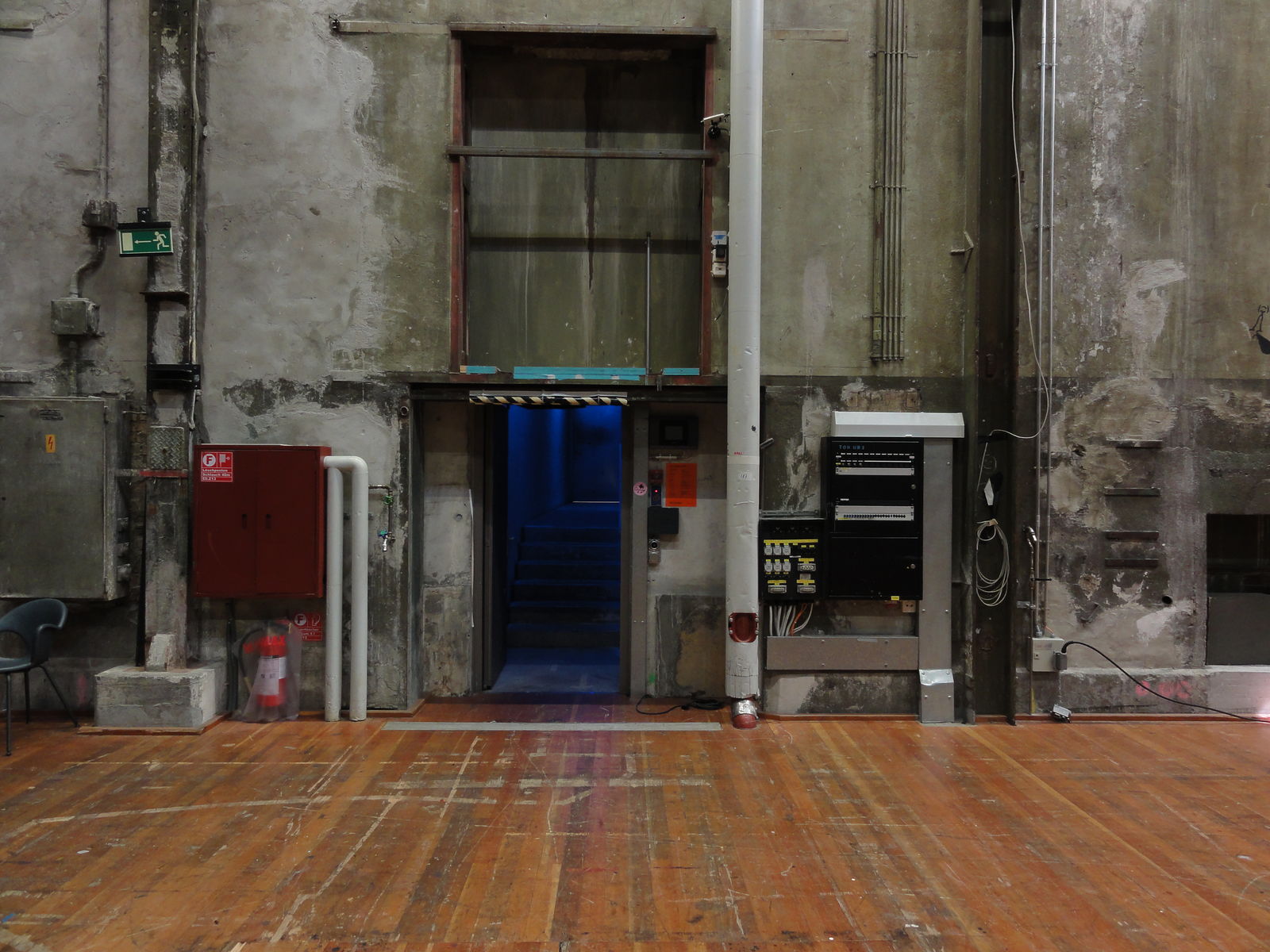

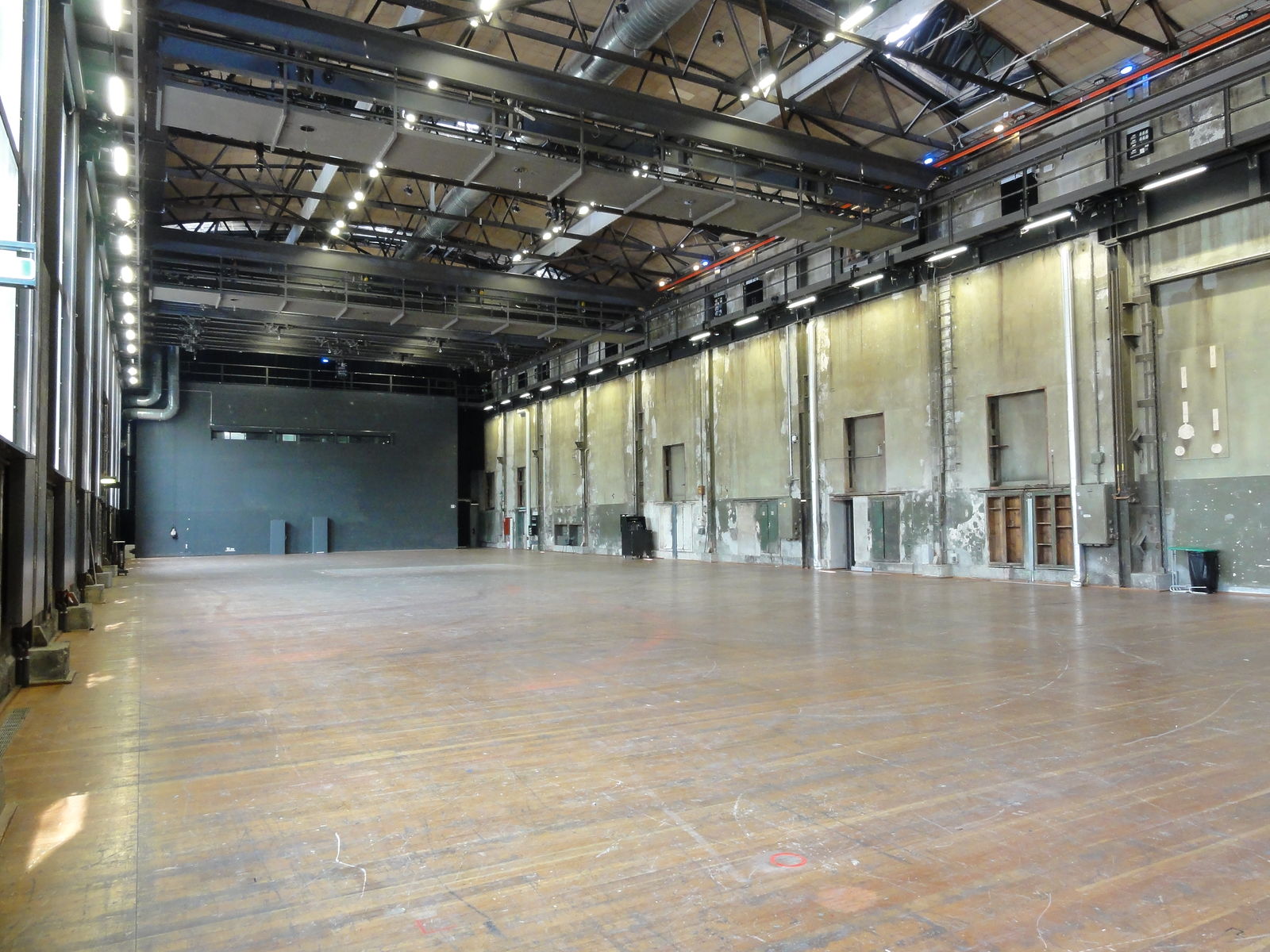

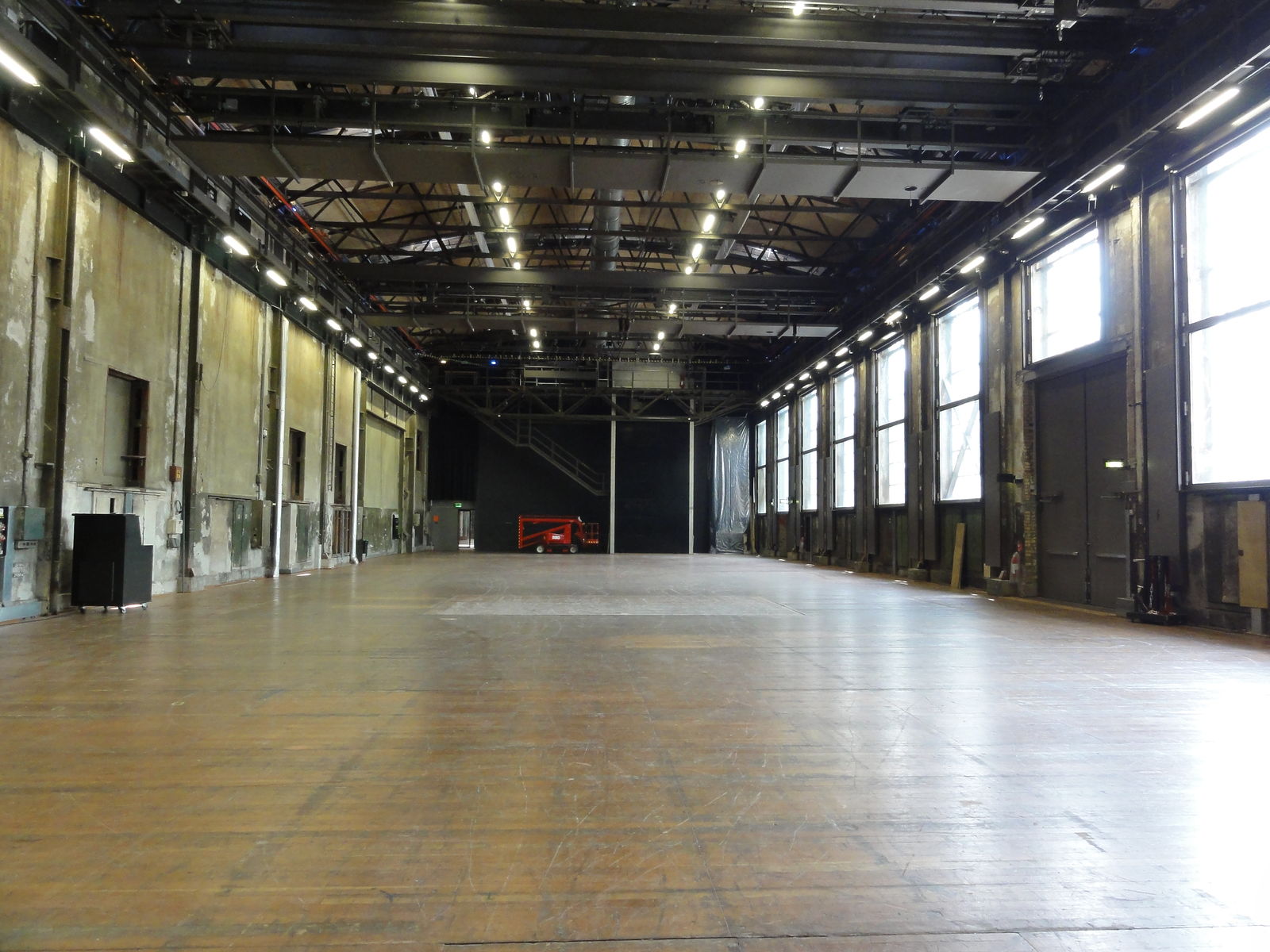

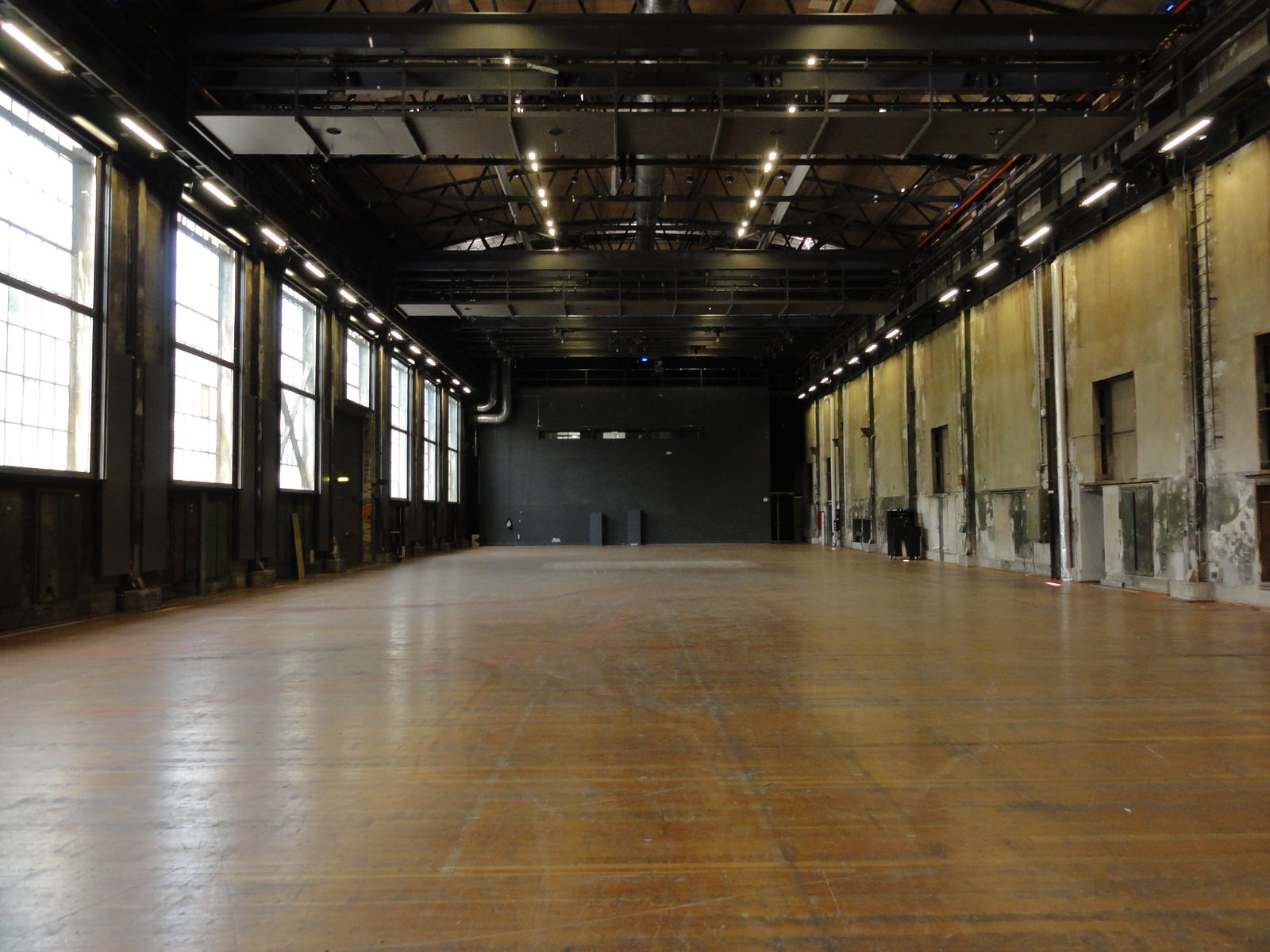

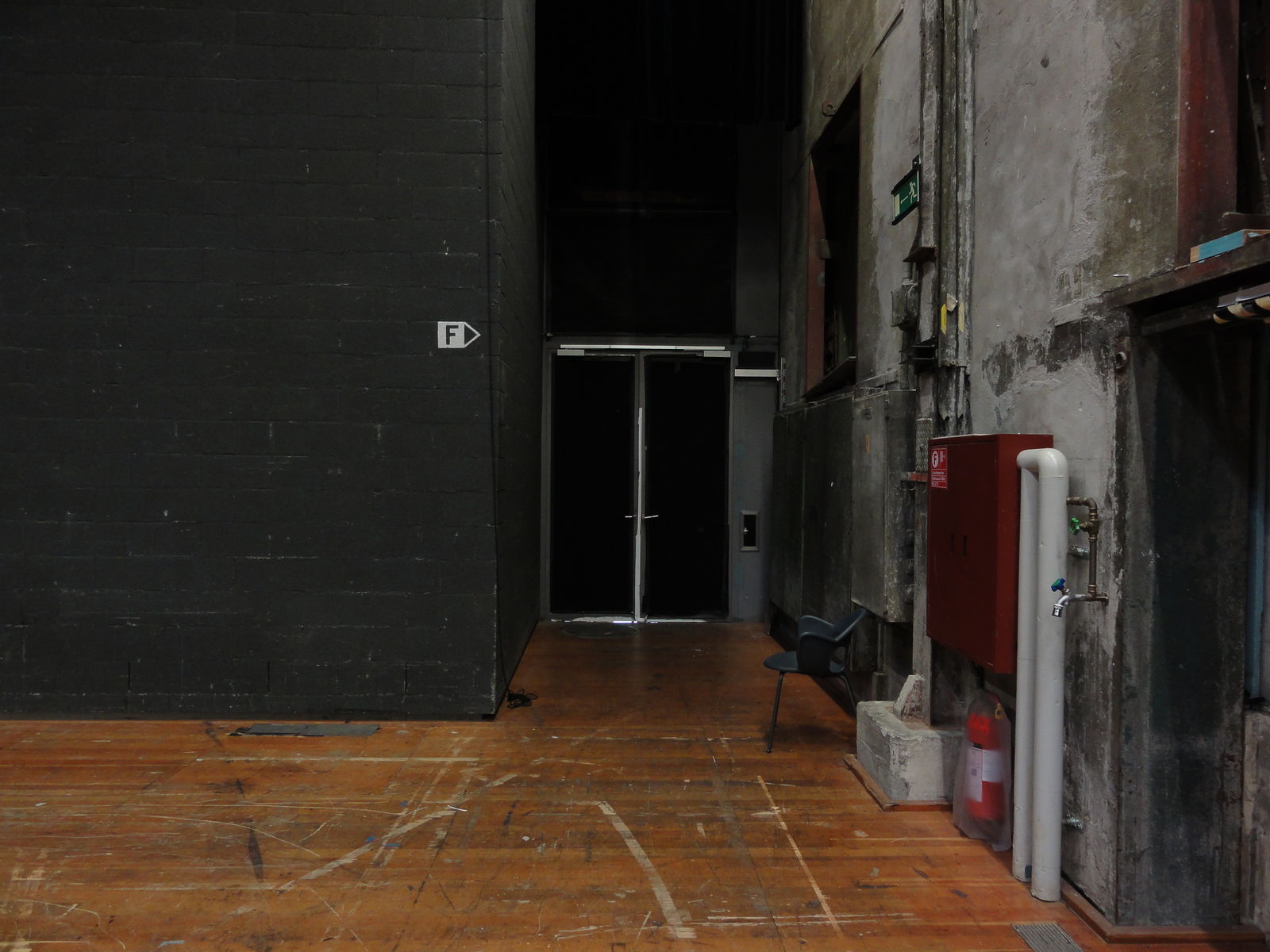

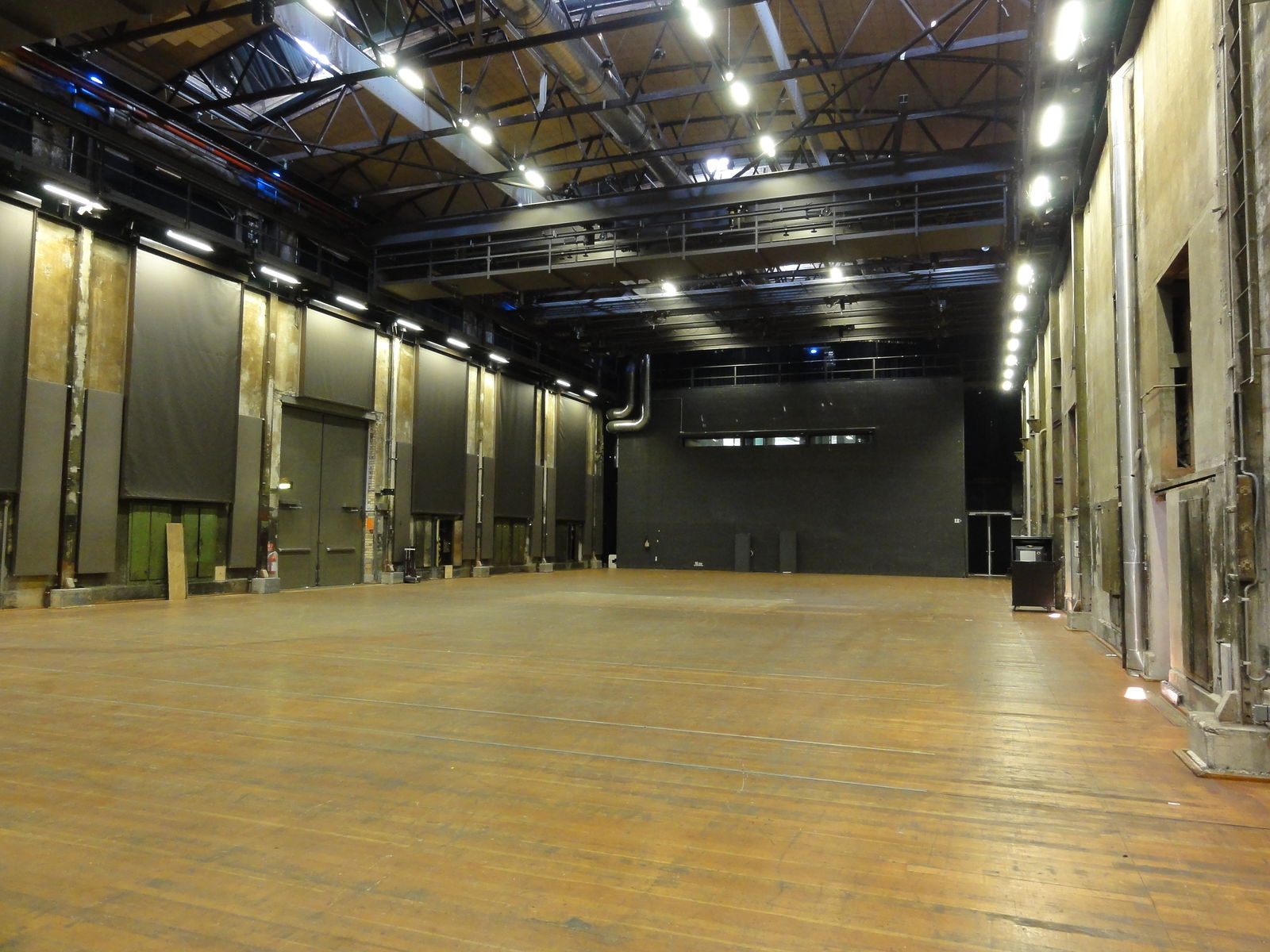

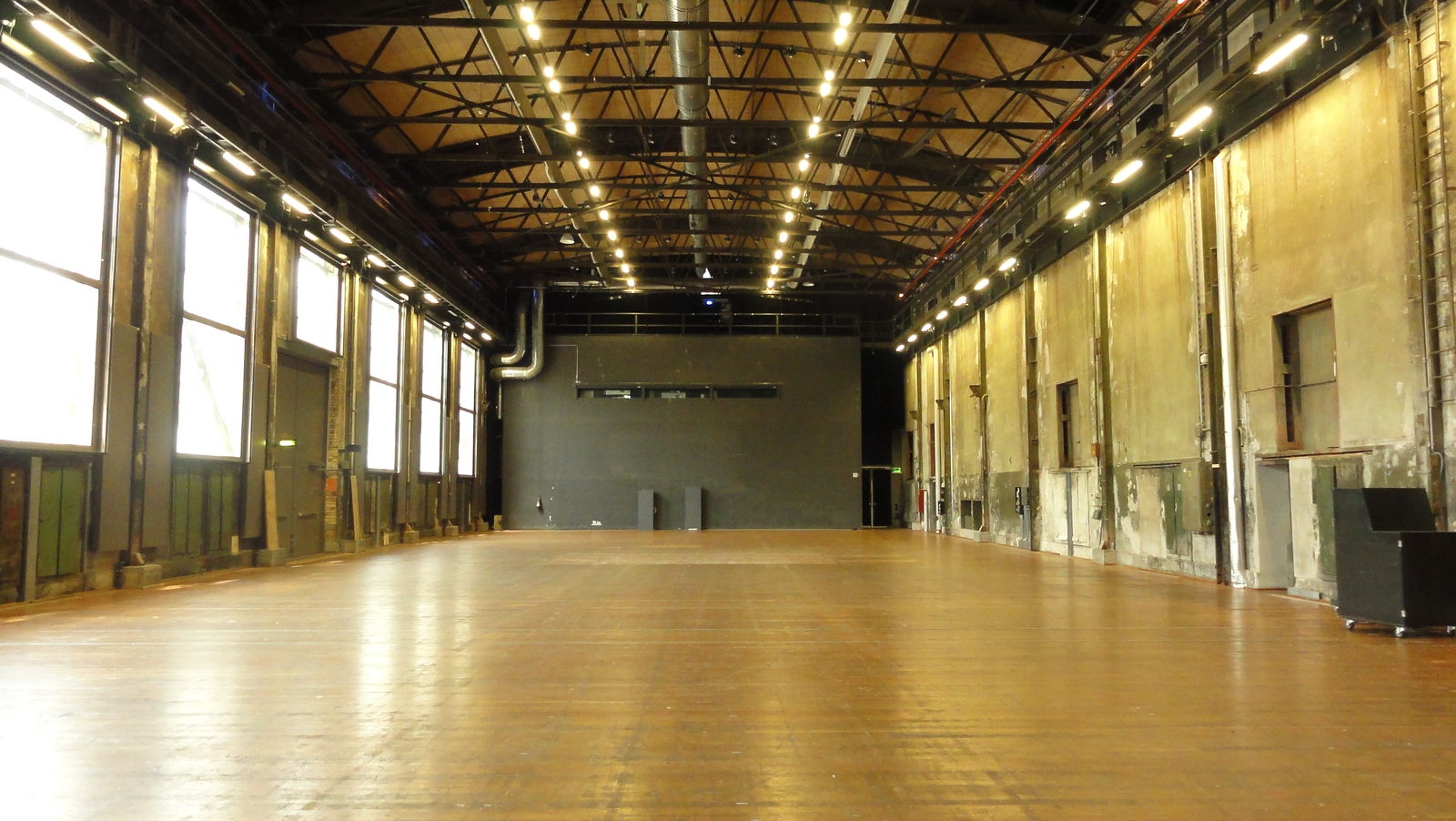

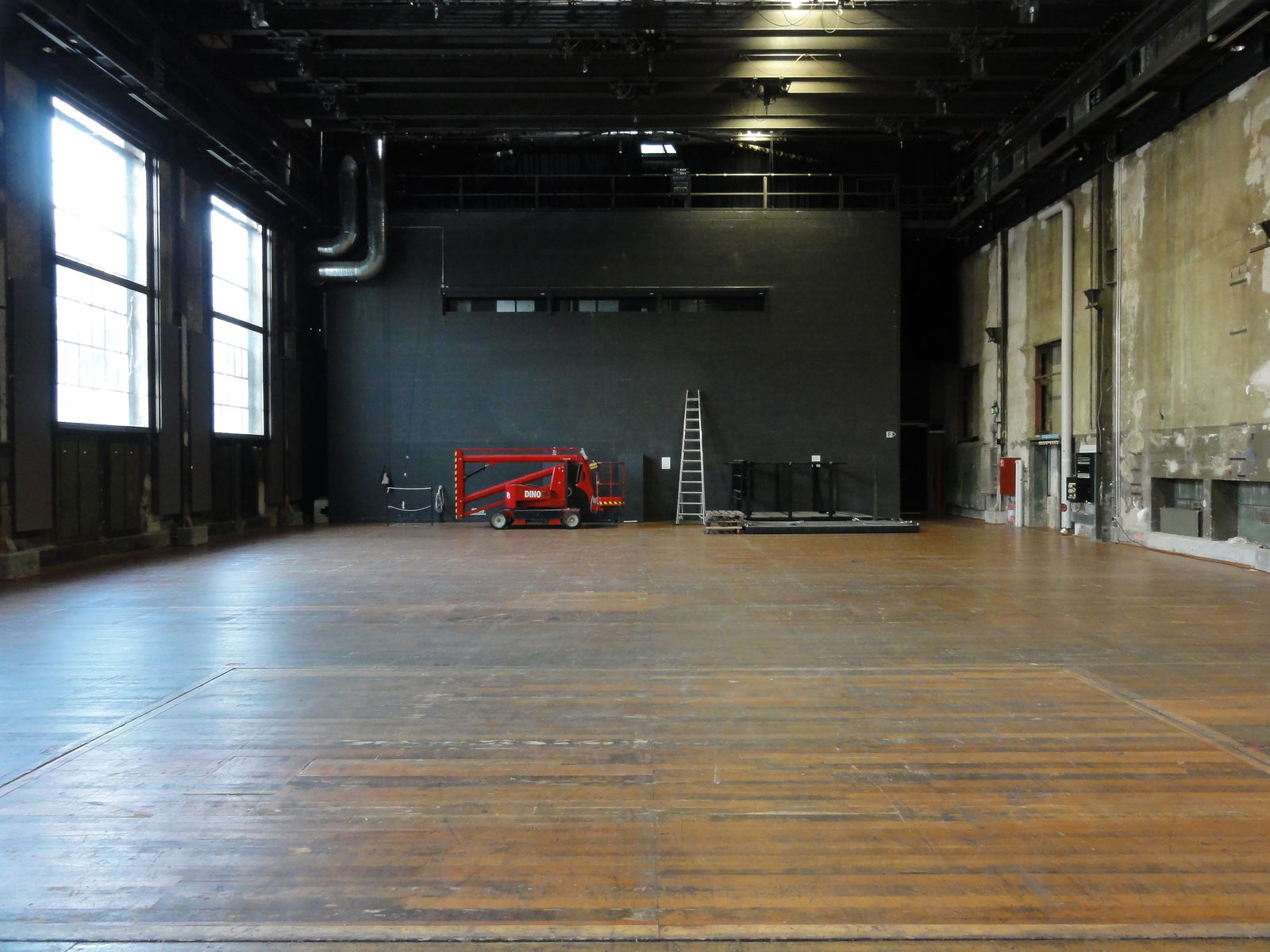

Image gallery & Videos
Download CAD & PDF
Halle Grundplan mit 400er Tribüne_20230407 (PDF, 6 MB)
Halle Grundplan_20230407 (PDF, 4 MB)
Halle Grundplan_20230407 (DWG, 983 KB)
Halle Tribüne 400er_20230407 (DWG, 326 KB)
